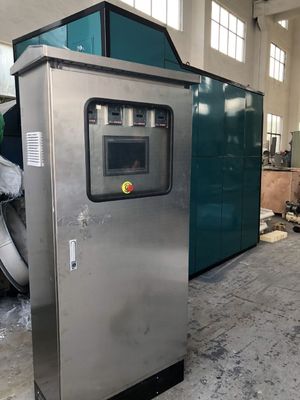

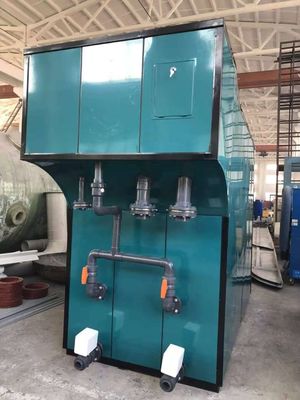

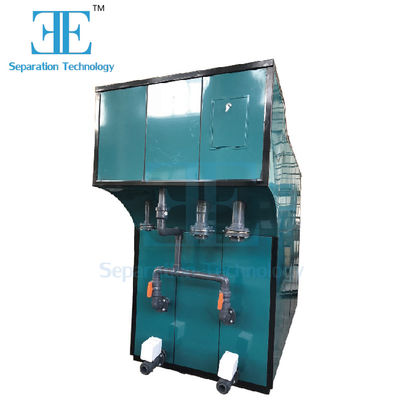

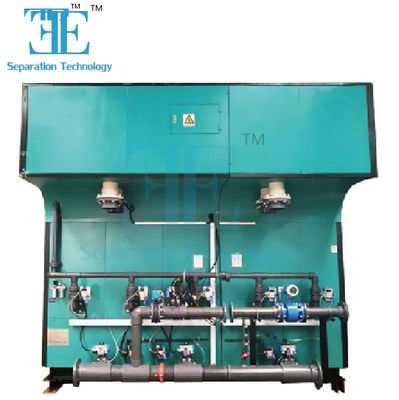

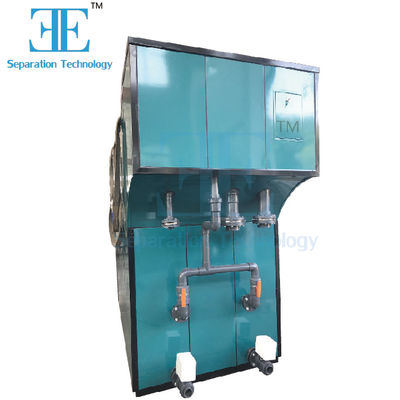

40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Grande immagine : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Dettagli:

Luogo di origine:	Shanghai, Cina
Marca:	ECOPRO

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	$36,897

Contatto

Descrizione di prodotto dettagliata

Produttività:	40m3/h	Peso:	2298 kg
Tipo di elaborazione:	Filtrazione	Energia:	3 kW, 30 kW, 20 kW
Voltaggio:	220 V, 380 V, 110 V.	Capacità:	40m3/h
Peso dell'elettrodo:	11500 chilogrammi	Peso vuoto:	3500 kg
Operazione Peso:	31000 kg	Capacità di trattamento:	1m3/h
Consumo energetico:	3KW/H.	Dimensione:	10006501500 mm
Peso dell'elettrodo:	650 kg	Peso vuoto:	400 kg
Operazione Peso:	1500 kg
Evidenziare:	40m3/h electrocoagulation wastewater system , electrocoagulation system 3-30 kW , industrial wastewater treatment electrocoagulation

Electrocoagulation Wastewater Treatment Station

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically employs aluminum, iron, or other readily available metals as anode materials.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

The system operates through electrochemical reactions:

Electrochemical reaction: Fe→Fe²⁺+2e
Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen [O] provides strong oxidation)
Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks bonds and functional groups)

These oxidation and reduction functions occur continuously on the plates for effective treatment.

System Features

Wide power adaptability: Operates within 220V-480VAC range
Safe operation: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymers

About Shanghai Ecopro Environmental Engineering

Established in 2017, Shanghai Ecopro Environmental Engineering Co. Ltd specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions to the industry.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
