40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

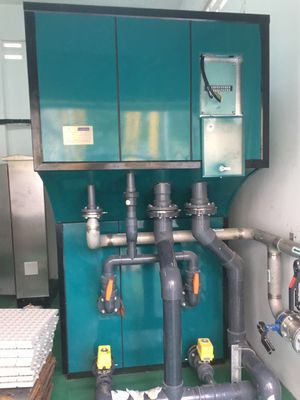

Grande immagine : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Dettagli:

Luogo di origine:	Shanghai, Cina
Marca:	ECOPRO

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	$36,897

Contatto

Descrizione di prodotto dettagliata

Produttività:	40m3/h	Peso:	2298 kg
Tipo di elaborazione:	Filtrazione	Energia:	3 kW, 30 kW, 20 kW
Voltaggio:	220 V, 380 V, 110 V.	Capacità:	40m3/h
Peso dell'elettrodo:	11500 chilogrammi	Peso vuoto:	3500 kg
Operazione Peso:	31000 kg	Capacità di trattamento:	1m3/h
Consumo energetico:	3KW/H.	Dimensione:	10006501500 mm
Peso dell'elettrodo:	650 kg	Peso vuoto:	400 kg
Operazione Peso:	1500 kg
Evidenziare:	40m3/h electrocoagulation wastewater system , electrocoagulation treatment system 3-30 kW , industrial wastewater electrocoagulation system

Wastewater Treatment Station Electrocoagulation Wastewater Treatment

Electrocoagulation Equipment Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a wastewater treatment process that utilizes metal hydroxide produced by soluble metal anodes during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron, and other readily available, inexpensive metals.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e. The nascent oxygen [O] has strong oxidation function comparable to UV, H₂O₂ and O₃.

Cathode reduction: 2H⁺+2e→2[H]→H₂. Nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

These oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide power supply adaptability: 220V-480VAC range available
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety; multiple abnormal indications and protections (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: Automatically detects ion state in water to adjust current and voltage
Energy efficient: Fe(OH)₂ and Fe(OH)₃ are excellent coagulants. No polymer required is a major feature

Company Introduction

Shanghai Ecopro Environmental Engineering Co., Ltd., the flagship company established in 2017, focuses on one-stop water & wastewater treatment equipment and separation service environment solutions. As a professional environmental engineering company, we adhere to craftsmanship spirit to provide industry with equipment, services, and systematic solutions.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
