40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

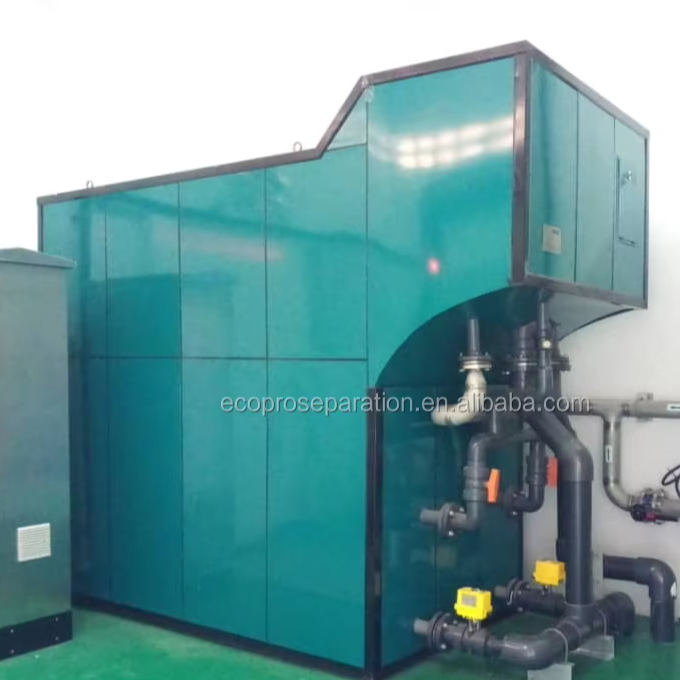

Grande immagine : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Dettagli:

Luogo di origine:	Shanghai, Cina
Marca:	ECOPRO

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	$36,897

Contatto

Descrizione di prodotto dettagliata

Produttività:	40m3/h	Peso:	2298 kg
Tipo di elaborazione:	Filtrazione	Energia:	3 kW, 30 kW, 20 kW
Voltaggio:	220 V, 380 V, 110 V.	Capacità:	40m3/h
Peso dell'elettrodo:	11500 chilogrammi	Peso vuoto:	3500 kg
Operazione Peso:	31000 kg	Capacità di trattamento:	1m3/h
Consumo energetico:	3KW/H.	Dimensione:	10006501500 mm
Peso dell'elettrodo:	650 kg	Peso vuoto:	400 kg
Operazione Peso:	1500 kg
Evidenziare:	40m3/h electrocoagulation wastewater system , electrocoagulation treatment system 3-30 kW , industrial wastewater electrocoagulation system

Electrocoagulation Wastewater Treatment System

Customized industrial wastewater treatment equipment utilizing electrocoagulation technology for efficient contaminant removal.

Electrocoagulation Water Treatment Process

Our electrocoagulation system utilizes metal hydroxide produced by soluble metal anodes (typically aluminum or iron) during flocculation to effectively remove contaminants from wastewater.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e. The nascent oxygen [O] provides strong oxidation comparable to UV, H₂O₂ and O₃.

2H⁺+2e→2[H]→H₂

Cathode reduction produces nascent hydrogen that breaks chemical bonds, COD, chromophore functional groups and multi-chain compounds.

These oxidation and reduction reactions occur continuously on the electrode plates.

System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to dynamically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives

About Shanghai Ecopro Environmental Engineering Co., Ltd.

Established in 2017, we specialize in comprehensive water and wastewater treatment equipment and separation services. Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.

Product Packaging
