360017001850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

Name: 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 13608 USD
Availability: InStock

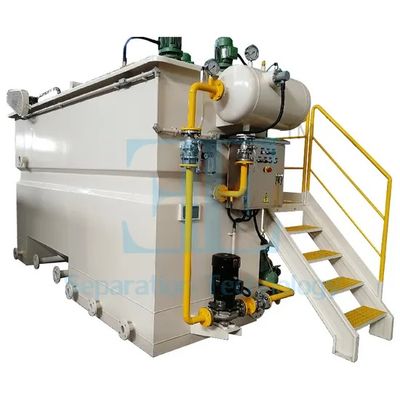

Grande immagine : 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	13608

Contatto

Descrizione di prodotto dettagliata

Modello n.:	Daf	Capacità:	5m3/h
Compressore d'aria:	0,55KW	Potenza di pompa disciolta:	3KW
Potenza dello skimmer:	0,1kw	Potenza dell' agitatore di coagulazione:	0,55KW
Potenza dell'agitatore di flocculazione:	0,55KW	Potenza dell'agitatore di pH:	0,55KW
Dimensioni:	360017001850 mm	Capacità produttiva:	100000/WEEK
Contenuto SS:	ppm o mg/l	Contenuto di olio:	ppm o mg/l
Gamma di pH:	6 ~ 9	Contenuto del BOD:	ppm o mg/l
Contenuto della COD:	ppm o mg/l
Evidenziare:	360017001850mm Specification DAF System , 0.1kw Skimmer DAF System , 0.55kw Coagulate Agitator DAF System

Dissolved Air Flotation (DAF) Machine for Paper Making Industrial Wastewater Treatment

DAF System Introduction

The Dissolved Air Flotation system is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. This is achieved by dissolving air in the water under pressure and then releasing it at atmospheric pressure in a flotation tank. The released air forms microbubbles that adhere to suspended particles, causing them to float to the surface where they can be removed by a skimming device.

DAF System Work Process

Wastewater enters coagulation (RT1) and flocculation (RT2) reaction tanks from the equalization tank
Water coagulates with PAC and flocculates with PAM to form flocs
Wastewater and dissolved water enter the DAF tank reaction zone
Microbubbles and flocs combine to form low-density particles that float to the surface
Scum is scraped to the slag tank while clean water collects below
Most water is discharged while a portion recirculates to form dissolved water

DAF System Fabrication Process

Technical Data

DAF System Features

Microbubble generation technology
Subsurface capture mechanism
Automatic slagging controlled by liquid level
Non-clogging release with high efficiency

Applications

Municipal sewage treatment
Slaughter house wastewater
Metallurgical industry wastewater
Spraying sewage
Printing & dyeing sewage
Metal-processing sewage
Mining stone wastewater
Electronic sewage treatment

Model Selection Criteria

To select the appropriate DAF system model, consider these factors:

Wastewater type (dairy, car washing, slaughter house, food processing, etc.)
Suspended solids content (ppm or mg/L)
Oil, grease, fat, and FOG content (ppm or mg/L)
pH level (6-9 preferred; corrosive substances may require special materials)
BOD and COD levels (ppm or mg/L)

Packaging Information
