Industrial DAF System with 0.55kw Flocculation Agitator and pH Agitator for Wastewater Treatment

Name: Industrial DAF System with 0.55kw Flocculation Agitator and pH Agitator for Wastewater Treatment
Brand: Shanghai Ecopro Environmental Engineering Co., Ltd.
Price: 13608 USD
Availability: InStock

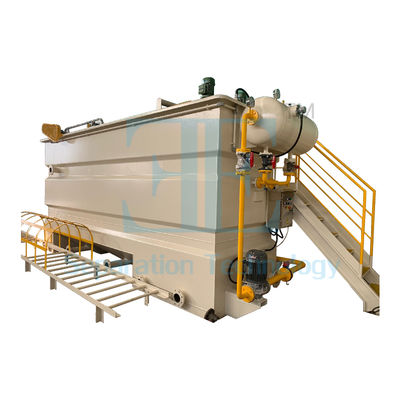

Grande immagine : Industrial DAF System with 0.55kw Flocculation Agitator and pH Agitator for Wastewater Treatment

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	13608

Contatto

Descrizione di prodotto dettagliata

Modello n.:	Daf	Capacità:	5m3/h
Compressore d'aria:	0,55KW	Potenza di pompa disciolta:	3KW
Potenza dello skimmer:	0,1kw	Potenza dell' agitatore di coagulazione:	0,55KW
Potenza dell'agitatore di flocculazione:	0,55KW	Potenza dell'agitatore di pH:	0,55KW
Specifiche:	360017001850 mm	Capacità produttiva:	100000/WEEK
Contenuto SS:	ppm o mg/l	Contenuto di olio e grasso:	ppm o mg/l
Gamma di pH:	6 ~ 9	Contenuto del BOD:	ppm o mg/l
Contenuto della COD:	ppm o mg/l
Evidenziare:	0.55kw Flocculation Agitator DAF System , 0.55kw pH Agitator Wastewater Treatment System , Industrial Usage Dissolved Air Flotation Device

Dissolved Air Flotation Device for Wastewater Treatment

Efficient Removal of Grease, Suspended Solids, and COD Reduction

The Dissolved Air Flotation (DAF) system is a water treatment process designed to clarify wastewater by removing suspended matter such as oil, grease, and solids. This system effectively reduces COD levels while improving water quality.

DAF System Overview

The process involves dissolving air in water under pressure and releasing it at atmospheric pressure in a flotation tank. The released air forms microbubbles that adhere to suspended matter, causing it to float to the surface where it can be removed by skimming.

Working Process

Wastewater enters coagulation and flocculation tanks where chemicals (PAC and PAM) form flocs
Treated water and dissolved air enter the DAF tank's reaction zone
Microbubbles adhere to flocs, forming particles that float to the surface
Surface scum is scraped into a slag tank while clean water is collected below
A portion of clean water is recirculated to maintain the dissolved air supply

Key Features

Efficient microbubble generation
Subsurface capture technology
Automatic slagging controlled by liquid level
Non-clogging, high-efficiency release system

Technical Specifications

Applications

Municipal Sewage

Slaughter House Wastewater

Metallurgical Industry

Spraying Sewage

Printing & Dyeing

Metal-Processing

Mining Wastewater

Electronic Sewage

Model Selection Guide

To select the appropriate DAF system model, please provide:

Wastewater type (dairy, car washing, food processing, etc.)
Suspended solids content (ppm or mg/L)
Oil & grease content (ppm or mg/L)
pH level (6-9 preferred)
BOD and COD levels (ppm or mg/L)

Packaging Options
